How do heat pumps work?

Berlin, Aug 31: Around half of Germany's homes are heated by natural gas and a quarter with oil. As the country transitions away from fossil fuels in the face of the climate crisis, many are looking for alternatives.

Heat pumps are one technology being widely discussed. But how do they work exactly?

A heat pump extracts warmth from outside air, the ground or a nearby source of water to generate heat using something called evaporative cooling. You"ll know how satisfying it is putting a cold cloth on your skin in sweltering temperatures. It's the same effect. The cold water evaporates, becomes gaseous and you cool down.

Here's the science behind it: The transition from water to vapor requires a lot of energy. To change state, the water molecules draw that energy from their surroundings, in this case warm skin. That process brings about the cooling effect. Conversely, much of this energy is released as heat back into the air once the evaporated water becomes liquid again.

Heat pumps, fridges, and air conditioners all exploit these transitions. Refrigerators cool down on the inside and get warm on the outside. For heat pumps it"s the opposite.

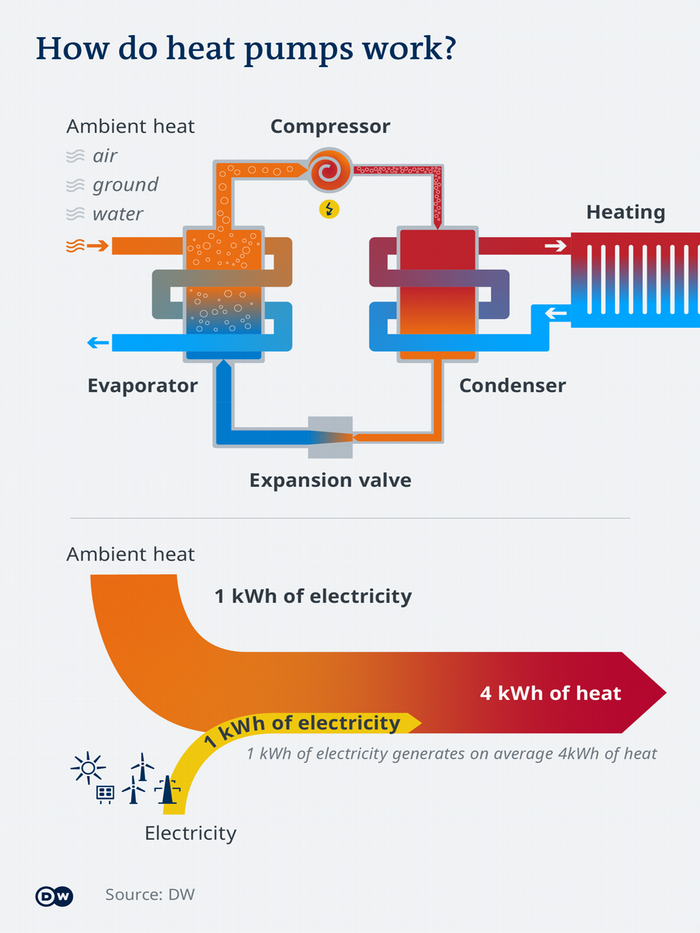

In the case of heat pumps, a special refrigerant circulates in a closed pipe system. Refrigerants evaporate at very low temperatures, sometimes below minus 50 degrees Celsius (minus 58 Fahrenheit).

Heat from the ground or air, for example, warms the refrigerant, which then evaporates in the circuit. A compressor squeezes the molecules of the refrigerant gas together, further increasing its temperature. When it then liquifies again, it releases the extra heat into the heating system. That means heat pumps can be used to warm or cool a home, office, or any other indoor space.

Water, air source, or geothermal heat pump: Which is best?

While there are different kinds of heat pumps, they all work on the same principle of extracting thermal energy from the environment.

Water heat pumps can use groundwater or water from rivers or lakes. Air-source ones run on regular air pulled in from outside or hot exhaust air produced at industrial sites or data centers.

For geothermal heat pumps, probes are drilled 100 meters (328 feet) or more into the ground, depending on the density of the rock. The deeper the borehole into the earth, the warmer it gets.

Groundwater heat pumps are more efficient, but also more expensive. The air-source variety work almost anywhere but can be noisy.

In the process of heating a building, heat pumps can cool down groundwater by 4 degrees, or reduce the air temperature outside it by 10 degrees.

Can heat pumps also heat in cold weather?

Even on cold winter days, there's enough thermal energy underground, in the air or groundwater to heat a building. In Scandinavia, for instance, many people heat with air-source heat pumps even during severe winters. These extract heat energy from the air at temperatures as low as minus 20 Celsius.

Still, they require more energy to operate in the cold and work better in warmer weather. Heat pumps are also kitted out with heating rods that use electricity, as a backup.

How much electricity do heat pumps consume?

While most of the energy is taken from the environment, the devices do require additional power to run the electric motor for the compressor, pumps and fans. In good conditions, one kilowatt-hour of drive electricity can generate around six kilowatt-hours of heat. An 80-square meter insulated apartment needs less than 1,000 kilowatt hours of electricity per year.

Heat pumps are more efficient in new insulated buildings, especially ones with underfloor heating and large radiators. In older homes in Germany, air-source heat pumps generate about three kilowatt-hours of heat from one kilowatt-hour of electricity, according to a study by the Freiburg-based Fraunhofer Institute for Solar Energy Systems. Using groundwater as the energy source generated, on average, four times as much heat in comparison.

In principle, heat pumps can generate temperatures of more than 70 degrees Celsius. That means they can also heat uninsulated houses with old radiators. But the device's electricity consumption would then be significantly higher.

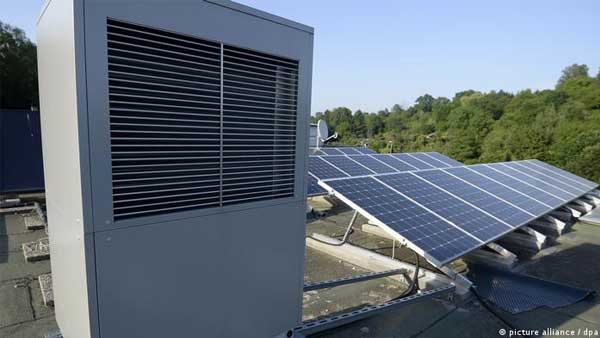

Is it cost-effective to use solar power for heat pumps?

Solar energy from your roof is cheaper than from the power grid and is also climate friendly. But solar modules generate much less electricity in colder conditions. So more would be needed to produce the same amount of electricity during the winter heating season. Or you would have to buy additional electricity.

Can heat pumps also cool?

Modern pumps can switch from heating to cooling mode. In that case, the thermal energy from inside buildings is simply transferred to the outside air or groundwater. Likewise, modern air conditioners can also heat.

Are refrigerants harmful to the climate?

Most of them are. Chemical refrigerants called hydrofluorocarbons have traditionally been the dominant choice for coolant used in heat pumps and air conditioning systems. These are up to 4,000 times more harmful to the climate than CO2 if they get into atmosphere, which can happen through leakage or incorrect disposal.

More and more heat pumps are now being sold with the climate-friendlier refrigerants propane, CO2 or ammonia. The European Union is phasing out the use of HFCs in heat pumps and air conditioners in favor of the greener alternatives.
